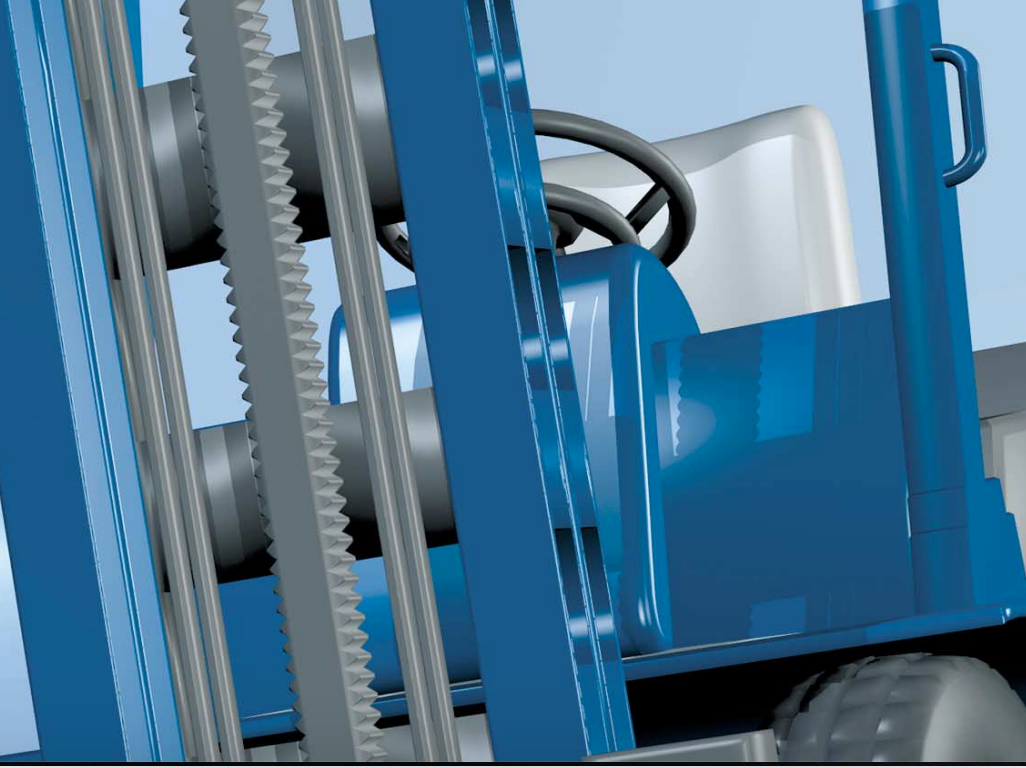

Adept describes HYDAC when it comes to lift trucks
HYDAC’s adeptness at finding the best solutions – from components to hydraulic, electronic, or mechanical systems – for lift trucks is well known.
Solutions include:
- Higher level of comfort due to reduced vibration and noise
- Improved operability due to optimised design and combination of components
- Increased operational safety by reducing number of interfaces
- Incorporation of reliable electronic systems and components
- Cost optimisation by standardisation and modular construction
- Active co-operation in a close development partnership
- Worldwide commercial and technical support through a global presence
Sensors, system electronics and condition monitoring
Sensors, system electronics and condition monitoring feature:
- Application-compatible sensors: IP 67 K Vibration-resistant through use of potted components
- All common connections available
- Pressure and temperature
- Fluid level and flow rate
- Measuring instruments for acquiring operating data
- Application-specific control and regulating electronics such as a proportional amplifier
- Preventive fluid servicing
- Signals to customised software or external hand-held measuring units
- Oil condition
- Particle contamination and moisture
Accessories
Accessories for the completion of hydraulic systems include:
- Standard ball valves (high pressure)
- Tamper-proof inductive proximity switches (high pressure resistant)
- Fluid level sensors
- Temperature switch TSE
- Standard clamps 3015
- Air/water reservoir clamping bands
- Test point connections
- Quick release couplings
Accumulator technology
HYDAC has on offer all major types of accumulators for every application such as:
- Damping of pressure surges
- Weight compensation
- Energy storage for emergency systems
- Pilot oil supply
Cooling systems
To comply with legal requirements for noise, emissions and fuel economy, high capacity and easy-to-install cooling systems are available. Features include:
- Integral thermally controlled bypass valves Electrical/hydraulic fan drives with proportional speed control
- Oil/air coolers
- Multiple combined cooling systems
- Tank-filter integration
Subsystems and components for hydraulic system
Subsystems and components for hydraulic system include:
- System control blocks for the lift mast hydraulics, with and without load sensing, for optimum utilisation of power when lifting and lowering.
- Vehicle specific and reduced loss design, individually equipped with valves, filters, accumulators, sensor technology, test points.
- Control blocks for supplying pilot oil circuit using an electronically controlled accumulator charging function guarantee system availability in the event of pump failure.
- Compact power units – equipped and tested as complete ‘plug-and-play’ systems – ready for installation.
- Electroproportional valves with well-adapted performance characteristics guarantee the coordination of all functions for a specific application.
Tank and filter systems
A comprehensive range of hydraulic filters and breather filters, made from high quality filter element materials, provide a high level of operational safety and long service life, such as:
- Return line and suction boost filter RKM
- Return line filter RFM
- Supply circuit filtration
- Pressure filter MFM and HFM
- Tank filter solutions from one company
- Ready-to-install complete systems, optimised for component protection, system cleanliness and venting
Electrohydraulic components and systems solutions
Electrohydraulic components and systems solutions are available for:
- Electric, diesel and LPG forklifts
- Transportable forklifts
- Stock trucks
- Electric forklift trucks
- Reach stackers
For further information in pdf downloads, visit: https://www.hydac.com.au/industries/lifting-and-material-handling
