The need for thermal management for mobile machines running on electricity is increasing. The interaction between the heat emitted and the heat required in mobile working machines is more complex than ever before. An electrified machine’s heat balance is fundamentally different from that of an internal combustion engine.
Whether in summer or winter, thermal management is the key to the efficiency of electric machines.
Coordinated thermal management for mobile machines ensures maximum efficiency – regardless of the ambient temperature. This is because dissipating heat to protect the components and using it efficiently for air conditioning purposes is an important part of the discipline.
Vehicle Thermal Management Systems (VTMS)
To make the design and selection of high voltage components as cost-effective as possible, we take a holistic approach to making vehicle thermal management systems and can supply you with one that’s designed for your machine.

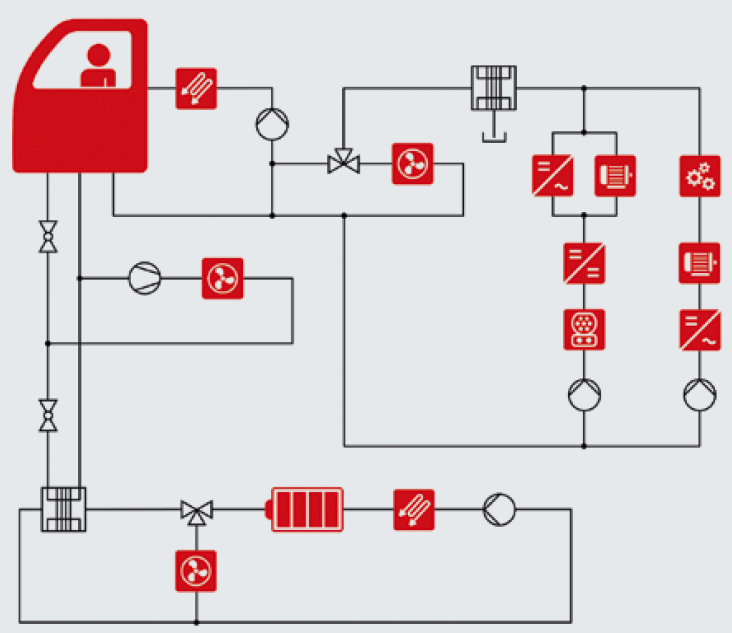

The interaction of cooling and refrigerant circuits coordinates energy storage, power electronics, traction and working drive and keeps them within an optimal operating window for your application. The accompanying scheme shows an example of the tasks mentioned.
Compared with conventional combustion technology, the high efficiencies of the high-voltage components do not generate sufficient power losses to heat the cabin of a working machine. The existing heat flows must therefore be conducted efficiently and supplemented by fast-response components.
Depending on the respective requirements, the energy storage system can be tempered by the refrigerant circuit under ambient conditions or already by cooling. We search for and find the cooling strategy that fits your system best as well as implement it.
The implementation of the appropriate logic ensures that cooling and heating systems become smart thermal management systems. These electronic control units interact with the component library of the HYDAC software to create the machine-specific TMS functions. By relying on pre-validated components of the MATCH Toolbox, you gain time and save costs.
Battery Thermal Management Systems – BTMS

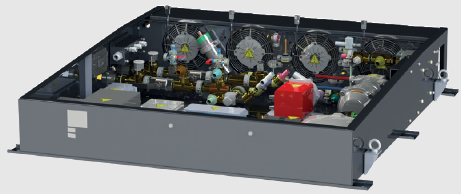

Shock- and vibration-resistant mobile chiller in a compact and highly integrated designer.
Our battery thermal management systems ensure that the temperature of the battery remains in the optimal range. In addition, other functions can be integrated which heat or cool the driver’s cab. A compact system for a controlled temperature of the battery and passenger comfort.
- Stable battery performance with the best possible lifespan
- Standardised, but optionally adaptable and customisable
- Validated E/E architecture based on modular software
- Allows fast charging of the battery
Cooling Systems for Motor, Inverter & Hydraulics
Mobile Air Coolers
AC-M series
Specifically designed for mobile applications where high performance is required in combination with a compact design and simple installation.

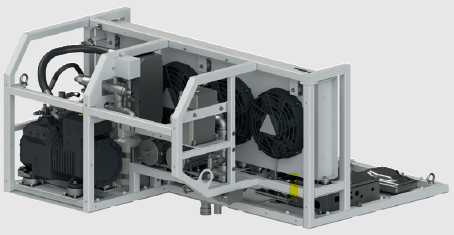

Mobile Liquid Cooling System
FLKS-SC1
Our versatile liquid cooling systems deliver your cooling liquid at the right temperature and pressure for an efficient result.

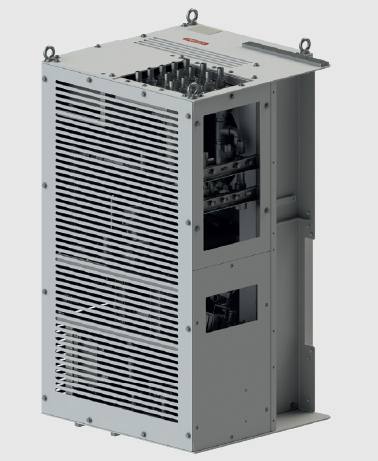

Custom Cooler
CFT
The HYDAC CFT was specially developed to meet the high demands encountered in mobile applications.
Contact Us Today
For more information on motors, drive sets and motor/inverter combination units for your application, visit our Engiro website or contact us here.
