Mobile controllers

HYDAC offers a wide range of off-the-shelf products from TTControl, ranging from powerful CODESYS high-end controllers to cost-effective, mid-size ECUs. In addition, the portfolio also includes controllers for safety-critical applications, certified according to DIRECTIVE 2006/42/EC.

What's more, the products fulfil Safety Integrity / Performance Levels up to SIL 2 and PL d. Our ECUs answer to the demanding work environment of off-highway vehicles. Furthermore, to ensure a maximum level of reliability, we test all devices under extremely harsh conditions. Therefore, we use only the certified and tested components. Moreover, the electronic circuits beneficiate of a good protection thanks to a compact, automotive-style aluminium pressure die-cast housing.

The interconnection of several ECUs is possible via CAN bus to form a network. The programming of the units is either in C or in CODESYS®.

Key Characteristics:

• Suitable for a wide range of applications
• Certified according to EN ISO 13849 (PL d) and IEC 61508 (SIL 2)
• Compliant with functional safety standards
• A high-performance processors
• Software-configurable I/Os for many different sensors and actuator types
• A broad range of open programming environments, including C and CODESYS (V2.3, V3, V3 Safety SIL 2)

Available Products:

Safety Certified Controllers

	TTC 2300 Family The TTC 2300 family includes mid-sized control units for smart mobile machines that are functional, safety-certified, enable high performance, and support faster development cycles.

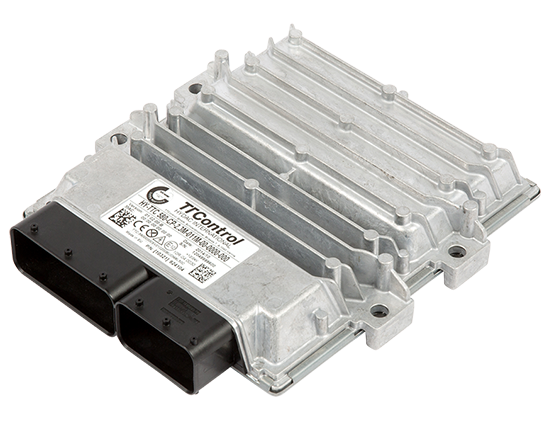

	HY-TTC 508/510/540/580/590 The HY-TTC 500 family consists of high-end safety control units designed to satisfy upcoming needs for a wide range of high-end applications like construction and agricultural machines.
	HY-TTC 94 HY-TTC 94 is the top-level electronic control unit of the HY-TTC 50 controller family, offering enhanced flexibility and safety
	HY-TTC 30S / 32S The HY-TTC 30S and HY-TTC 32S controllers are the safety certified variants of HY-TTC 30 and HY-TTC 32.

General Purpose Controllers

	HY-TTC 77 HY-TTC 77 is a powerful electronic control solution for the off-highway industry with 12V power supply.
	HY-TTC 71 The HY-TTC 71 is the ideal controller for smaller machines such as small wheel loaders, small excavators or small rollers with 12V power supply.
	HY-TTC 60 The HY-TTC 60 is part of the HY-TTC 50 controller family, offering unprecedented flexibility.
	HY-TTC 50 HY-TTC 50 is a powerful, yet cost-effective, electronic control unit.
	HY-TTC 30 / 32 HY-TTC 30/32 is a compact control unit specifically developed for use in cost-sensitive applications or smaller machines.
