FAQs
- What is the function of the H2GO?

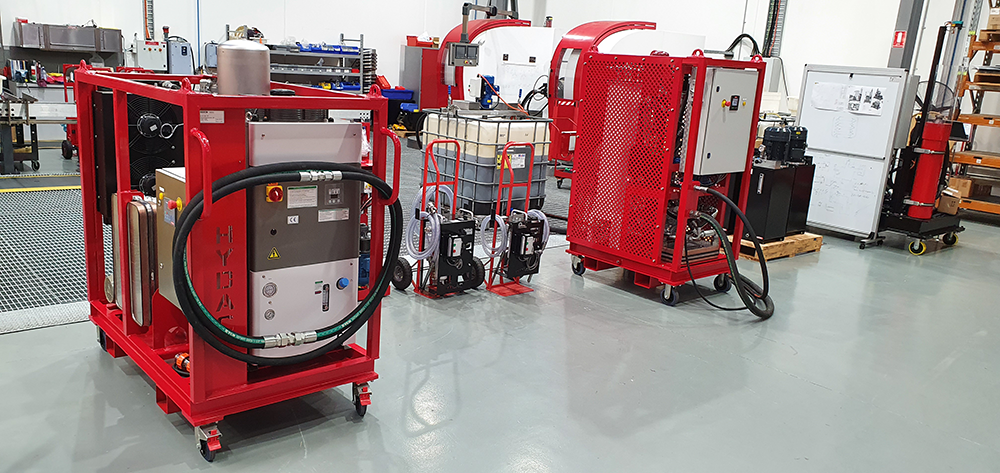

The H2GO water removal purifier/vacuum dehydrator separates free and dissolved water and dissolved gases from hydraulic and lubrication fluids.
On what principle does the H2GO operate?The H2GO operates on the principle of vacuum dewatering.
What part does the H2GO’s Aqua Sensor AS1000 play?The H2GO’s Aqua Sensor AS1000 continuously monitors water content and controls the unit.
How is H2GO use with higher viscosity and cold fluids permitted?A three-stage heating system is employed to increase dewatering capacity and permit H2GO use with higher viscosity and cold fluids.
How is the H2GO handled?Simple and reliable H2GO handling takes place via a programmable logic controller PLC used in combination with a touch screen control panel.
What are the advantages of using H2GO?Advantages of using H2GO include:
- Extremely low residual water and gas levels in operating fluids
- Longer oil change intervals
- Improved component service life
- Greater machine availability
- Reduction in life cycle cost
How can the H2GO clean fluids that have particulate contamination?Fluids that have particulate contamination can be cleaned when the H2GO is used in combination with HYDAC offline filtration systems.
Can the H2GO treat fluids that have a build-up of degradation products such as varnish?Fluids that have a build-up of degradation products like varnish can be treated by the H2GO in parallel with the Varnish Elimination Unit (VEU-AU).
What are the H2GO’s flow rates at 50Hz?The H2GO’s flow rates at 50Hz are 8.7-27l/min (automatically variable).
What is the H2GO’s filter bypass pressure?The H2GO’s filter bypass pressure is 3.5 bar.
What is the H2GO’s operating pressure?The H2GO’s operating pressure is up to 15 bar.
What is the H2GO’s viscosity range?The H2GO’s viscosity range is 12 … 320 mm2/sec.
