Load-Sensing Valve - LX-6
POA
To begin with, the LX-6 is a proportional directional control valve according to the load-sensing principle pre-compensated.
Indeed, the nominal flow rate to the working ports A and B is 160 l/min. Furthermore, the main spool determines the flow direction and magnitude of the flow rate.
Features:
- Firstly, the load pressure has an independent flow control with an open center (OC) system for a fixed displacement pump. Or a closed center (CC) system for a variable displacement pump
- Flow-optimized valve design
- A high mechanical and electrical resolution
- A compact size and low weight
- A modular design up to 10 working sections
- Plus, different types of operation (with/without hand lever): - Hydraulic - Electro-hydraulic (on/off, proportional)
- Also, application-specific main spools with adjustable stroke limiter
- Finally, shock/anti-cavitation valves for protection of actuators

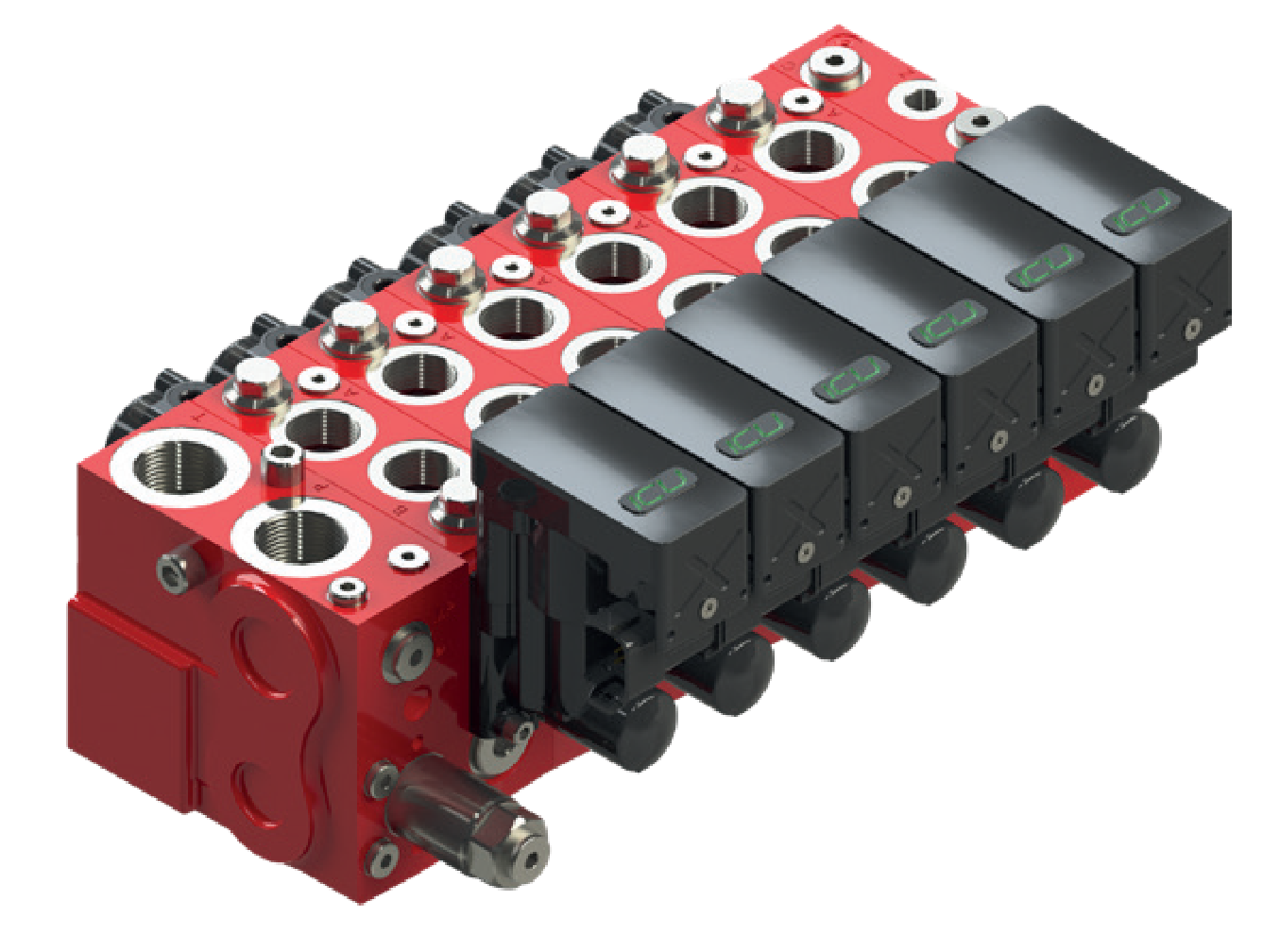

Intelligent add-on for load-sensing valve
The Intelligent Control Unit (ICU), purpose-built for load-sensing valve applications, forms part of HYDAC’s integrated solution for automated and electrified mobile and off-highway machinery. Designed to deliver high control accuracy, TÜV-certified functional safety and dependable performance in demanding environments, it provides a strong foundation for advanced automation and operator assistance systems. To learn more about the ICU, please refer to the ICU brochure in the datasheet section.
